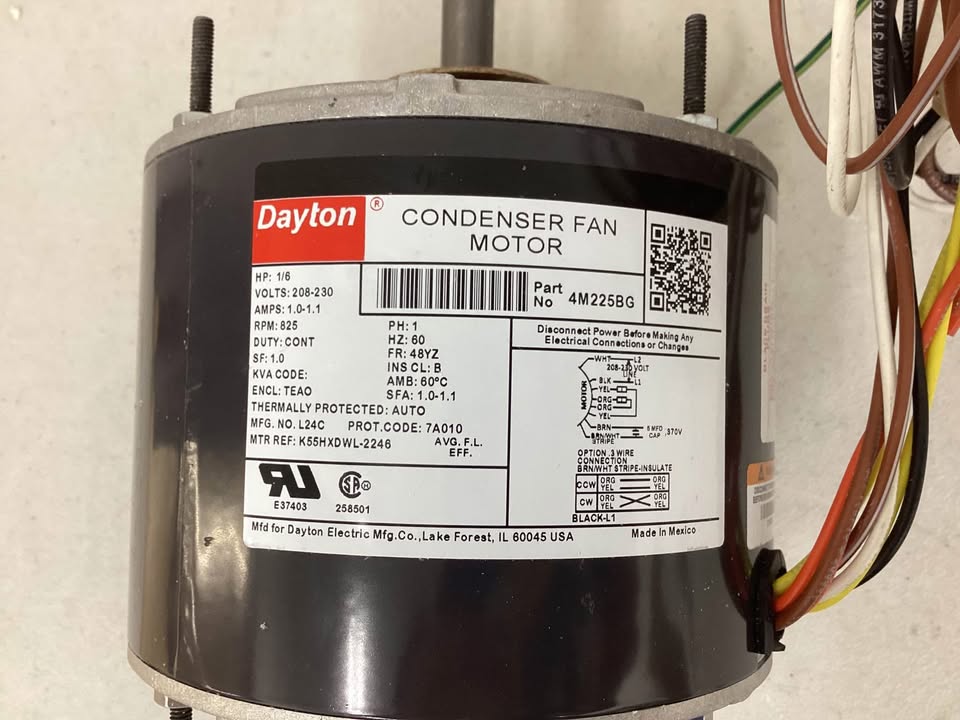

Dimensions Lead Length 36 in Shaft Length 6 in Stud Size 8-32 NC-2A x 3/4 in Shaft Dia. 1/2 in Length Less Shaft 4 15/16 in Bolt Circle Dia. 5 1/8 in Overall Length 10 7/8 in Body Dia. 5 5/8 in Details Motor Design Permanent Split Capacitor Phase Single HP 1/6 RPM Range 0-1,000 No. of Speeds 1 Voltage 208-230V AC Motor Shaft Rotation CW/CCW Frame 48YZ Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Stud Motor Sub Application Condenser Fan Motor Mounting Position All Angle Stud Quantity 4
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC Mounting Stud Pattern 3 5/8 in x 3 5/8 in Motor Bearings Ball Motor Thermal Protection Auto Duty Continuous Features Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs Nameplate RPM 825 Hz 60 Hz Motor Service Factor 1 Capacitor Required 2MDV4 Motor Application HVAC/R Max. Ambient Temp. 60 Degrees C Ins. Class B Motor Shaft Design Double-Flat Full Load Amps 1.0-1.1 A Application Condenser Fan Duty Cycle Continuous
